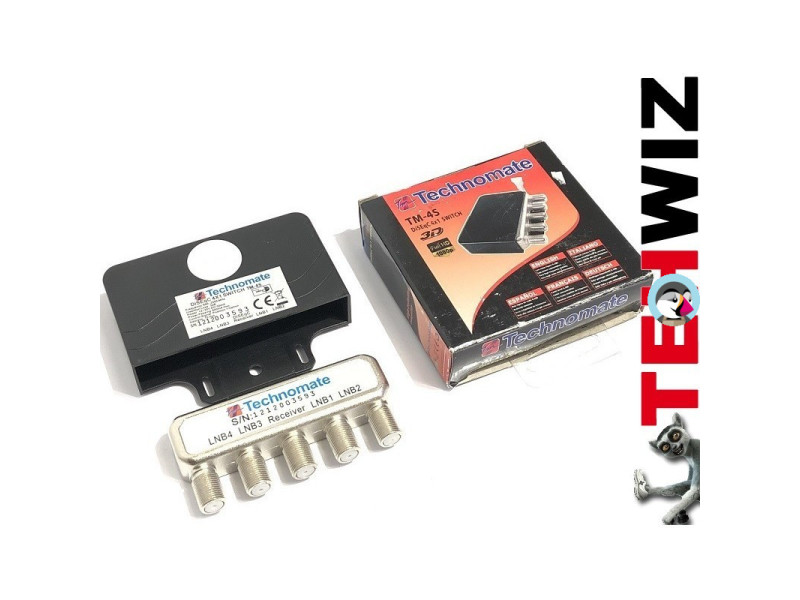

TECHNOMATE 4 Way Diseqc Switch

Nowy
Technomate
Na zamówienie
£ 4,99
Ilość

Opis Produktu

High performance with weatherproof housing

Enables switching between 4 LNB's on one satellite dish or separate satellite dishes into one receiver.

The switch has 4 Inputs and 1 Output for reception of 4 different satellites on one satellite receiver.

Type: 4-way

Frequency range 950-2300MHz


The four-way switch enables four LNBs to be connected to one receiver - all down one cable. Automatic switching between the satellites is then possible. The Diseqc switch is usually cable tied to the back of the dish. These Technomate switches are very small. The plastic cover covers the internal metal switch and the connections.
  • Input frequency (MHz): 950-2300
  • Insertion loss (dB): -3 (max)
  • Isolation (dB): 20 (min)
  • Input return loss (dB): 10 (min)
  • Output return loss (dB): 10 (min)
  • DC pass: Yes
  • DC power: 10mA
  • Max current to LNB port: 500mA
  • InputOutput connector: 75ohm F connector
